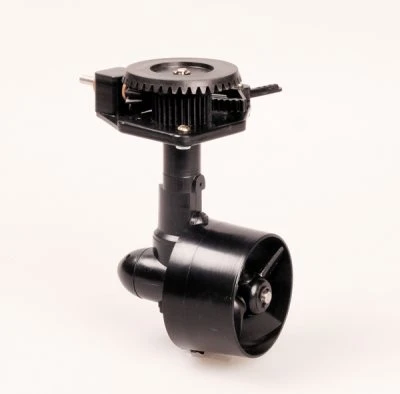

CEM Schottel Drive Unit 50mm

Original price was: $127.48.Current price is: $89.24.

SKU: CEM050 Categories: Drive Units & Outboards, Hardware & Radio Control

Fast, friendly, always here to help.
The Quality Choice for Smart Shoppers
Top-Notch Quality
Guaranteed High Quality

Description
Reviews (0)

Description

The Schottel drive unit, developed by the Schottel company, is a typical power unit installed on many types of working vessel such as tugs, ferries and buoy layers. The power of the drive motor is transmitted to the propeller, which is able to swivel. This arrangement alters the angle of thrust of the power unit directly, i.e. the flow is not deflected by a rudder, and this makes the Schottel drive unit a highly efficient design. The CEMSchottel drive unit emulates the functions and construction of the full-size system: the swivel range is 2 x 90º (180º) if a 2 x 45º servo is used.

Prop Diameter 45mm inside a 50mm I/D Kort Nozzle
Projects around 100mm from bottom of hull
Includes both L & R Rotation 4 Blade Kort Propellers
Input Shaft Diameter 4mm

Schottel diameter A 50 mm at the back
largest diameter B 55 mm
Propeller diameter C 47 mm
Shaft height D 37 mm
Height in the hull E 28 mm
Total height F 122 mm
Drive shaft dia. G 4 mm
Steering Angle +/- 90 °
