MFA 919D 540 Type Motor With Single Ratio Metal Gearbox 6:1

Description

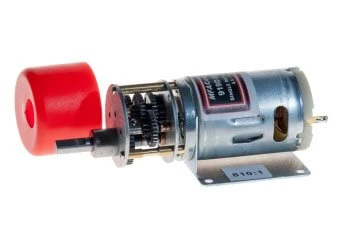

Designed for heavy-duty industrial and model applications this robust unit boasts a powerful high quality, three pole RE540/1 motor with sintered bronze bearings. The all steel gearbox incorporates bronze output bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The unit is mounted on a 1mm thick plated steel bracket.

The 6:1 Reduction Motor is ideally suited to 12V Scale Application

Motor Type RE-540/1
Operating Voltage 4.5-15 volts.
Current approx.2.1A at max efficiency 6v.
Current approx.2.85A at max efficiency 12v.
RPM at 6.0v – 6180 at max efficiency.
RPM at 12.0v – 13360 at max efficiency.
Weight 275g (approx)
Output Shaft Diameter – 6.mm
